CENTAUR

Stallion Centaur models integrate all components of a cylinder refill system into a single, turn-key package including a compressor, air storage vessel(s), purification system, air management panel, and a containment fill station.

​

Centaur models are defined by the capacity of the fill station and the number of storage vessels that can be mounted in the cabinet. The Centaur 2 is the smallest of the series and is frequently chosen when space is a consideration. The Centaur 2-4 and Centaur 3 are equal in size, but offer expanded capabilities over the Centaur 2.

Centaur2G2

  • 2 Position Fill Station

  • Accepts up to 3 ASME or ISO Storage Vessels Standard

  • Dimensions 83-7/8”W x 34-1/8”D x 74-5/8”H

​

Centaur2-4G2

  • 2 Position Fill Station

  • Accepts up to 4 ASME or ISO Storage Vessels Standard

  • Dimensions 93-7/8”W x 34-1/8”D x 74-5/8”H

​

Centaur3G2

  • 3 Position Fill Station

  • Accepts up to 4 ASME or ISO Storage Vessels Standard

  • Dimensions 93-7/8”W x 34-1/8”D x 74-5/8”H

​

Standard Features​

  • 6000 psi - select from 7.5 to 25 horsepower

  • “Bulk” air management panel, with remote fill port/valve

  • 2 or 3 position containment fill enclosure

  • Purification system matched to compressor output

  • Fully enclosed cabinet for quiet operation

  • Latching service access doors

  • Color, touch-screen operator interface for simple, automated operation and monitoring with shut-down alarms and on-screen status messages

  • Stallion Sample Tap System (STS) for easy air sample retrieval

​

Optional Features

  • “Cascade” air management panel

  • Stallion Auto-Fill system

  • Additional ASME or ISO Storage​ Vessels

  • CO monitor

  • Moisture monitor

  • Spring Rewind Hose Reel Module (50’, 75’ or 100’)

  • Comprehensive electronic interstage monitoring

  • Connectivity package (email or text alerts for system status changes or malfunctions)

  • Connections for remote storage cylinders

​

​​

UL Fill station label.png

Centaur 2

Centaur 2.png

Shown with Bulk Air Control Panel

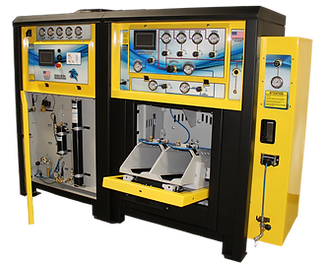

Centaur 2-4

Shown with Optional:

Stallion Auto-Fill

Hose Reel

CEN 2.png
Front Closeed.png

Centaur 3

Shown with Bulk Air Control Panel
